IP Camera Tester 8MP CVI TVI 5MP AHD CVBS 4 inch TFT Screen B1635
IP Camera Tester 8MP CVI TVI 5MP AHD CVBS 4 inch TFT Screen B1635
【IP Camera Tester】Network camera tester support max 8MP 4K H.265/H.264 IP POE Camera test.Multi-brand OVIF IPC test,Support batch activate Hik & DH cameras and modify IP address, password etc; IP Discovery/Quick OVIF/IPC test /RTSP play/Rapid OVIF.
【Coaxial HD camera test】Support max 8MP TVI CVI camera, 5MP AHD camera, CVBS camera test.Automatically adapt to camera type.PAL/NTSC video test signal,PTZ control and call OSD menu. RS485 control, Baud 150-19200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc.

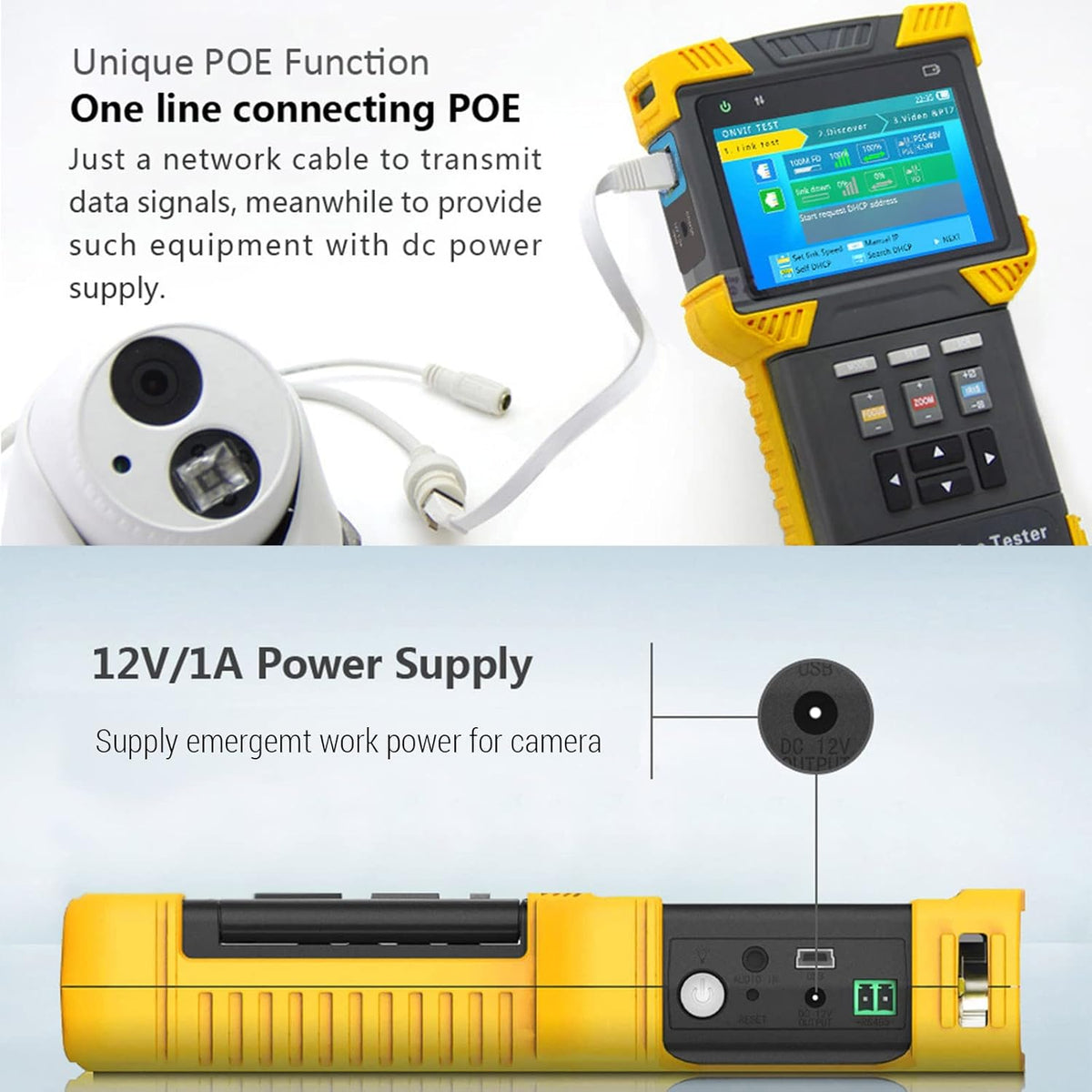

【Multi-function IPC tester】Automatically detect HK&DH camera,Live Support view, snapshots, records, digital zoom. Support PoE IEEE802.3af/at 48V, maximum power 15.5W,PSE test, RJ45 network cable test,the camera tester tool will make your installation process simple and efficient.
【More parameters tester】Model:T71 7 inch TFT screen 800x480 resolution.13 keys of the main keyboard, and 45 keys of the flip keyboard.Support online update and local update.LED light,Ethernet port 10/100Mbps,network state and traffic display,Audio input.Cemera tester Dimension/Net weight 7.48x4.53x1.46inch(1.19lbs).
【Power & Quality Assurance】The security camera tester is powered by a 7.4V/1500mAh/11.1Wh lithium-ion battery and can operate for up to 6 hours after 3-4 hours of charging.DC 12V/1A output. We tested every cctv camera tester before we sent it to the Amazon warehouse, to ensure that you will not receive defective products. We offer 24h technical support and 1 year warranty.
Model: T71
Display 4”IPS TFT screen, 800*480 resolution keyboard
Video Mode
CVBS:1 channel BNC input, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P, Samsung, Panasonic etc

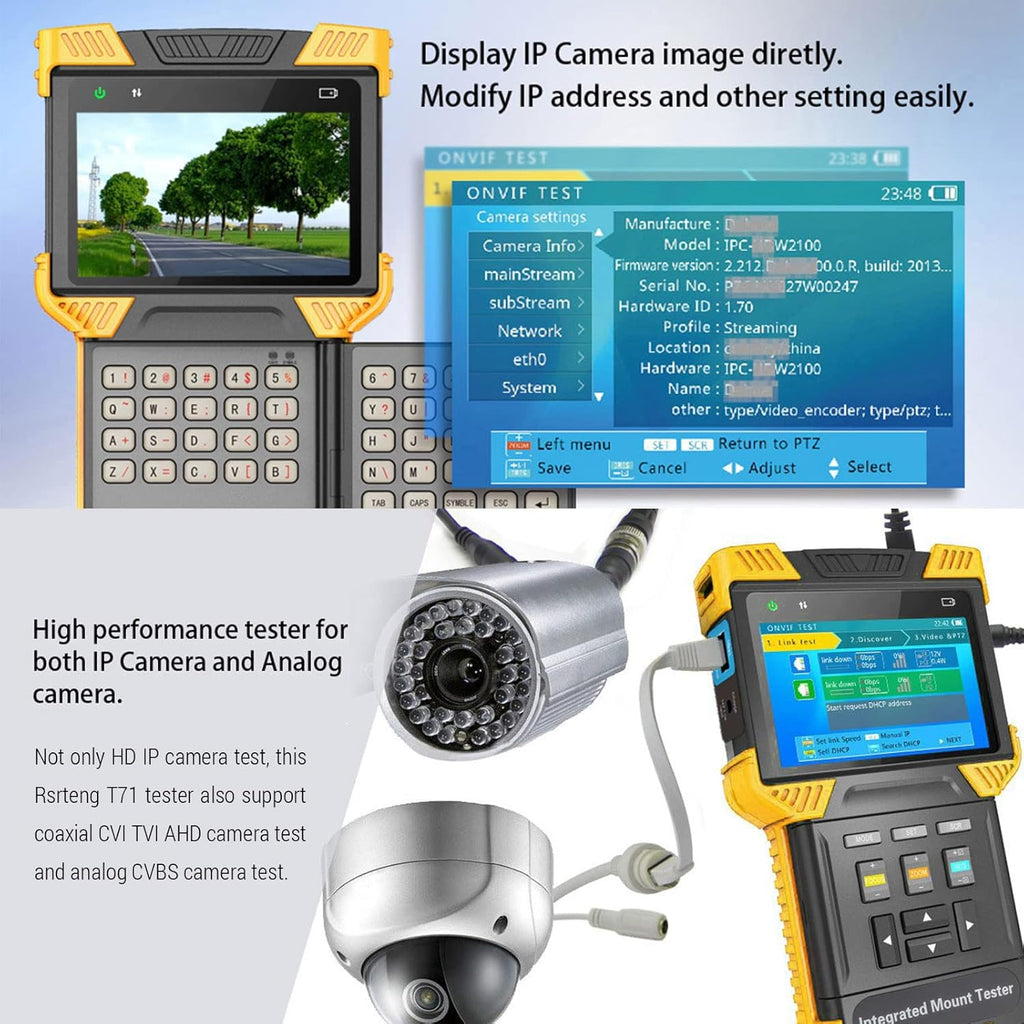

IP camera test:
4K/H.265/H.264, IP Discovery/Quick Ovif/IPC test /RTSP play /Client APK.
Rapid Video:Auto view the video, save snapshot, record video.
Automatic detect HK and DH camera .
48V PoE power output, max 15.5W
Coaxial HD camera test:
8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, PTZ control/ call OSD menu
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, PTZ control / call OSD menu
5MP AHD test, 2560x1944P 12.5/20 FPS, PTZ control / call OSD menu
Auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
Others
Power: Output DC12V/1A power out.
Battery: Built-in Lithium ion battery 7.4 V / 1500mAh.
After charging 3-4 hours, normal working 6 h.
Network tool: IP scan, DHCP server, Ping test.
language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech.
Working Temperature: -10~50℃, Humidity 30%-90%.
Dimension/Net Weight：190x115x37mm(7.48x4.53x1.46inch)/ 0.54KG (1.19lbs)
Package
1x IP Camera Tester
1x Network Cable/1x Coaxial Cable/1x Audio Cable/1x RS485 Cable/1x USB Cable/1x Power Adpter&Cable/1x Power Output Cable
1x Tool Bag
2x Lanyard
1x User Manual
